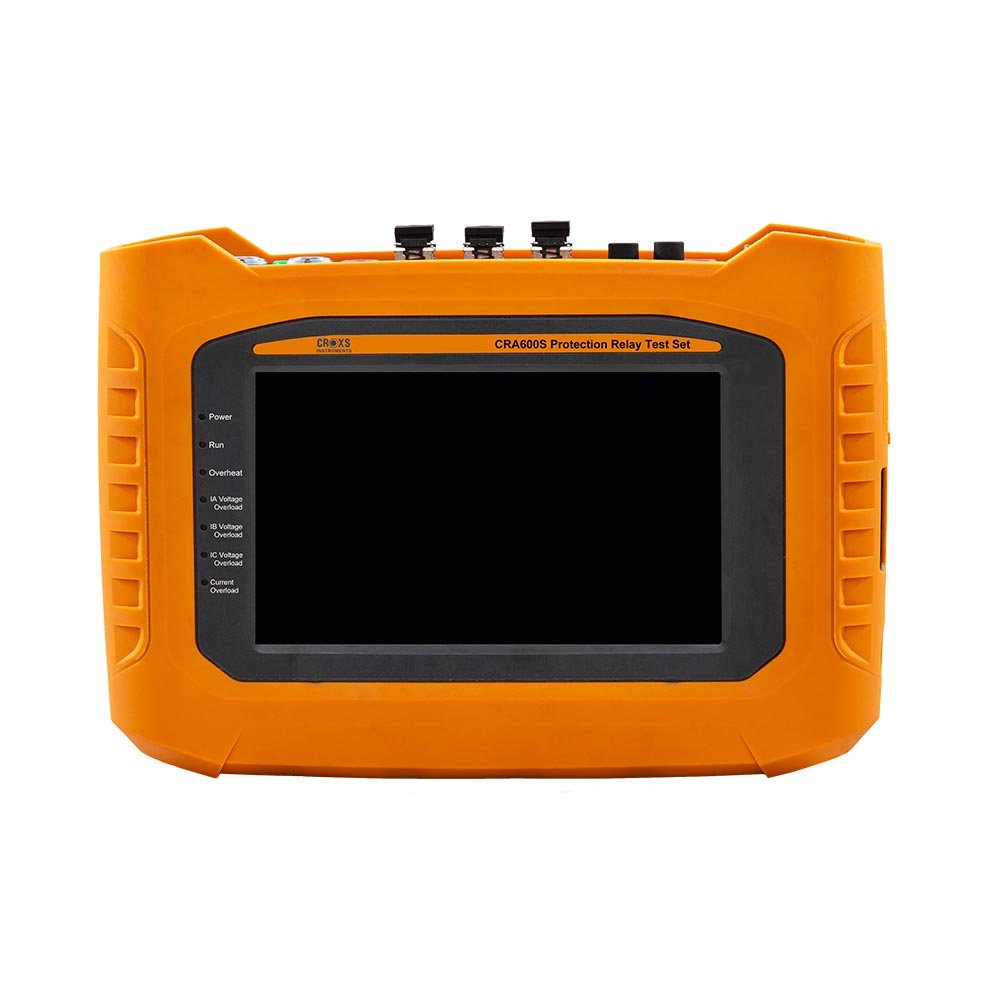

CRA600S hand-held digital-analog integrated relay protection tester uses advanced power supply and digital electronic technology, adopts miniature high-precision current and voltage amplifier module, and has built-in large. Power supply by capacity lithium battery pack has the characteristics of high output precision, small size and light weight. The instrument is operated by high-definition full touch screen, with rich test functions, which is suitable for conventional substation. Secondary operation and maintenance and debugging for users such as stations, smart substations, power plants and distribution networks.
| Voltage generators | |
| Number of outputs | 4×130V |
| Ranges | AC(L-N)：4×0-130V； |
| DC (L-N)：4 ×0-±180V | |
| Power | 4 ×26VA at 130V |
| Accuracy | error < 0.03 % rd. + 0.01 % rg. typ., at 0 … 130 V； |
| error < 0.08 % rd. + 0.02 % rg. guar., at 0 … 130 V | |
| Resolution | 10mV for 130Vac |
| Output response time | <100μs |
| Distortion (THD%) | <0.03 % typ., <0.1% guar. |
| at nominal values, 50/60 Hz and 20 kHz measurement bandwidth | |
| Current generators | |
| Number of outputs | 3×15A |
| Ranges | AC(L-N)：3×0-15A |
| DC (L-N)：3×0-±10A | |
| Power | 3 × 12VA at 15A |
| Accuracy | 3×15A： |
| error < 0.03 % rd. + 0.02% rg. typ., at 0 … 15 A； | |
| error < 0.08 % rd. + 0.02 % rg. guar., at 0 … 15 A； | |
| Resolution | 0.1mA |
| Distortion (THD%) | < 0.1 % typ., < 0.3 % guar. |
| at nominal values, 50/60 Hz and 20 kHz measurement bandwidth | |
| Output response time | <100μs。 |
| Optical fiber Ethernet interface | 3pairs |
| interface type | LC interface |
| Wavelength | 100 Mbps: 1310nm, Gigabit: 850nm |
| Communication protocol | IEC61850-9-2，GOOSE |
| Optical fiber serial interface | two, one for one |
| interface type | ST interface |
| Communication protocol | IRIG-B,PPS |
| Frequency-Amplitude chacteristic | ≤±0.05%~±0.5%(10Hz~1kHz) |
| Frequency | DC-10.0kHz； |
| Frequency accuracy | <1mHz(45Hz~65Hz)、 |
| <5mHz(10Hz~45Hz、65 Hz~450Hz)、 | |
| <10mHz(450 Hz~1000Hz)； | |
| Resolution | 0.001Hz |
| Phase | |
| Phase angle range | 0° ~ 360° |
| Phase angel accuracy | ±0.05°typ.(±0.1°guar.),at 50/60Hz |
| Phase angle resolution | 0.01° |
| Binary inputs | 4pairs，0-400V DC threshold or potential free |
| Binary outputs | 4pairs，In which a pair of quick-opening contacts |
| Dimensions | 261mm×181mm×80mm(W×H×D) |
| Weight： | <3.0kg |
