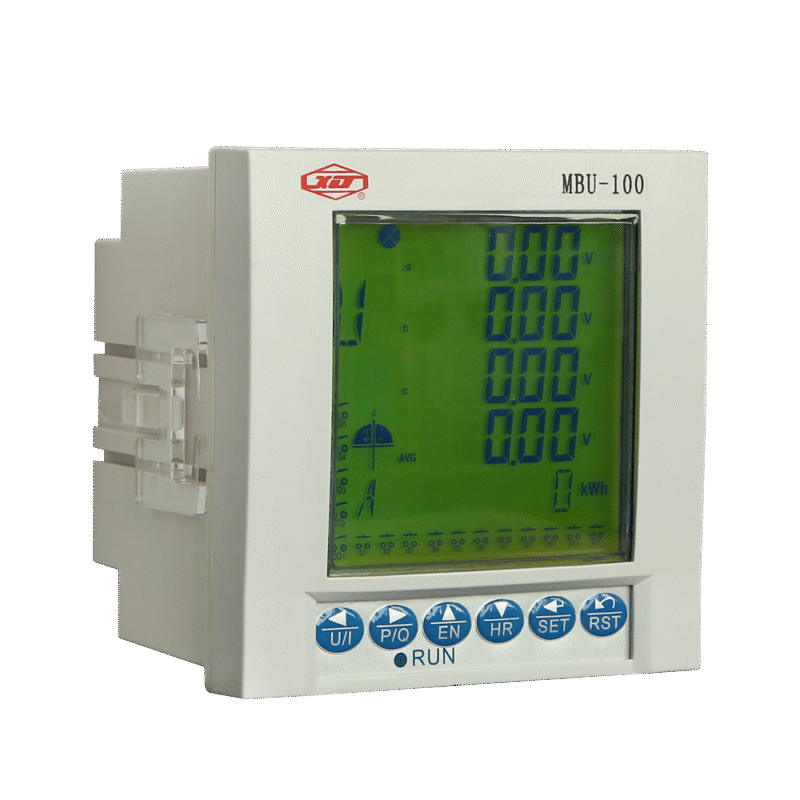

The MBU-100 Multi-Function Power Monitor integrates comprehensive three-phase power measurement/display, energy accumulation and time-of-use rate statistics, power quality analysis, setpoint over-limit monitoring, digital input/output, analog input/output, three-channel temperature measurement, SOE event recording, and network communication. This device can be widely used in distribution management, automation, and intelligent monitoring systems across various industries.
The MBU-100 Multi-Function Power Monitor integrates comprehensive three-phase power measurement/display, energy accumulation and time-of-use rate statistics, power quality analysis, setpoint over-limit monitoring, digital input/output, analog input/output, three-channel temperature measurement, SOE event recording, and network communication. It features a compact size, light weight, powerful functions, high precision, flexible configuration, and easy installation. This device can be widely used in distribution management, automation, and intelligent monitoring systems across various industries.
1. Environmental conditions：
Operating temperature: -20℃ ~ +60℃
Atmospheric pressure: 80Kpa~110Kpa
Relative humidity: 5%~95% (no condensation inside the product, no ice.)
2. Rated parameters
1) Power supply for the device
Communication: AC/DC 220V± 15%
2) Rated current input: 5A or 1A variable ratio can be set
3) Rated voltage input: 100V/57.5V 380V/220V variable ratio can be set
4) Allowed overload capacity: 1.2 times rated voltage/current, continuous operation
5) Power consumption: <5W
Size: Panel: 96mm (L) x 96mm (W) x 16mm (H)
Body: 90mm (L) x 90mm (W) x 56mm (H)
Weight: 0.5KG
